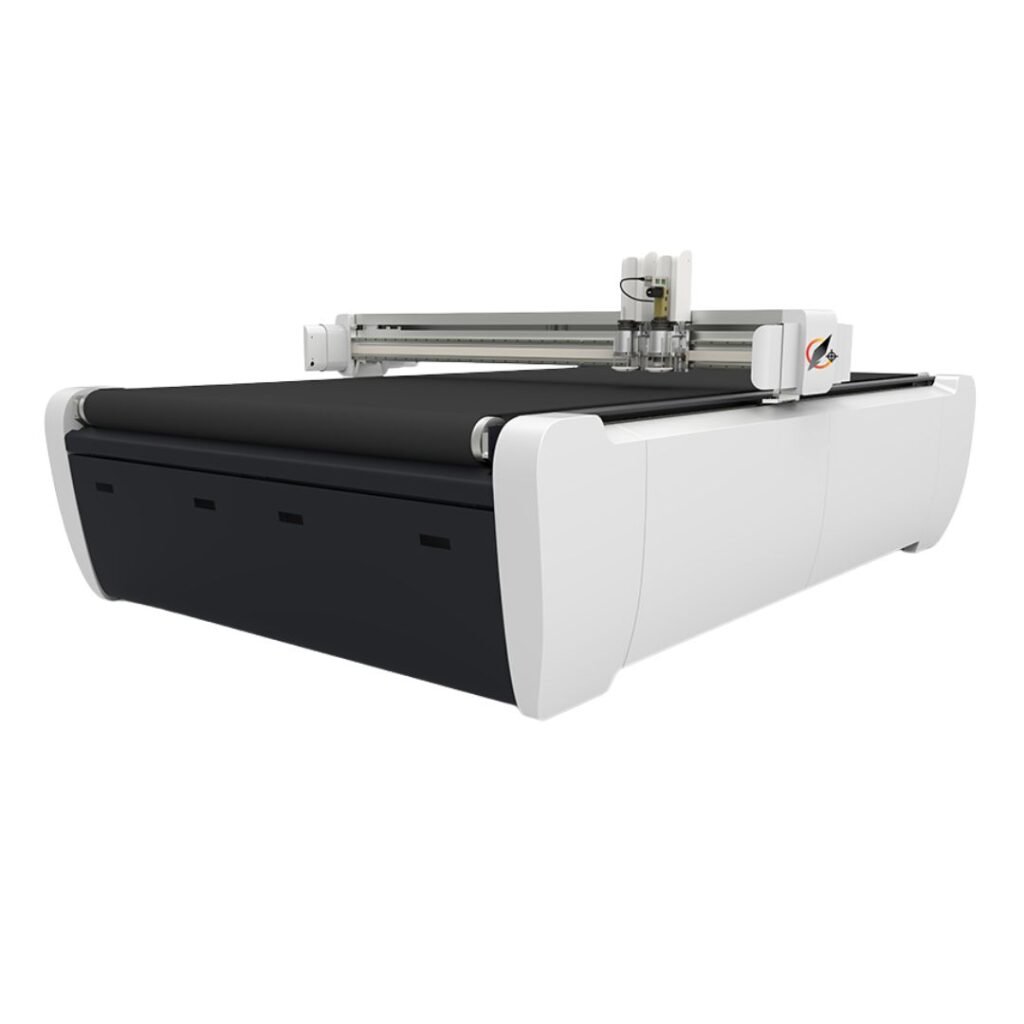

VECTRA G2516 Precision Motion Control
Maximun speed 1800 mm/s
With the advanced VECTRA G25516 motion control system, the machine delivers intelligent performance and adaptability. By switching between motion strategies, it effortlessly manages the processing requirements of products from different sectors.
Ultra-high Strength Integrated Frame
12mm steel frame with qualified connection technology, the machine body frame weighs 600KG. Strength increased by 30%, reliable and durable.
Coexistece of details and strength

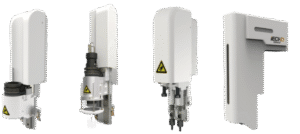

Diversified Cutting
Module Configuration
Modules can be freely combined to meet different material requirements across industries.
Various Material
Unwinding Devices
Multiple unwinding devices available, adaptable to different material features.
Upgraded
Circuit Layout
New circuit design for easier operation and improved reliability.

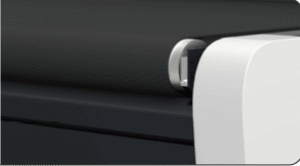

Intelligent
Conveyor System
Automated material transmission enables continuous cutting, saving labor and boosting efficiency.
Variety of tools
For your selection

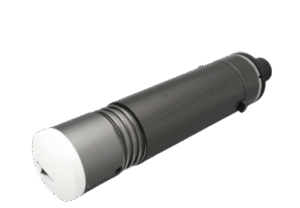

uct
Cuts materials up to 5mm quickly. Cost-effective with three blade holders for versatility.

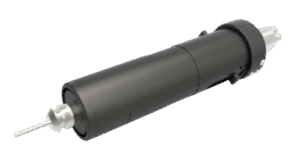

RZ
High-frequency spindle (350W, 60,000 RPM). Cuts foams/hard materials up to 20mm. Long life with cooling system.

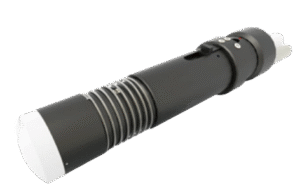

pot
Pneumatic oscillating tool for foam and honeycomb.

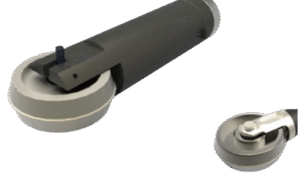

ctt
Creasing tool for corrugated board. Produces clean, high-quality creases in multiple directions.

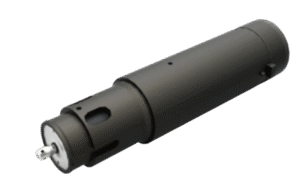

kct
Designed for vinyl and stickers. Cuts accurately by depth without damaging lower layers.

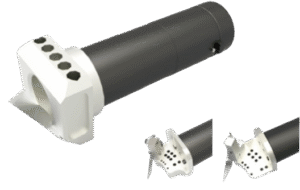

v-cut
Creates V grooves at angles (0°–45°) in corrugated/sandwich materials.

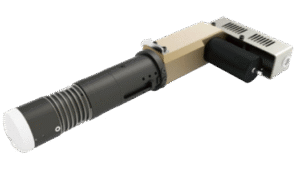

eot
Brushless DC motor with vibration. Great for medium-density materials, cuts arcs as small as 2mm.

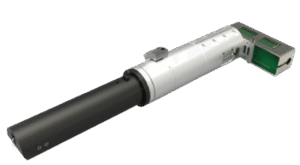

drt
Rotating blade for woven materials. Reduces drag force, cuts fibers/threads completely.

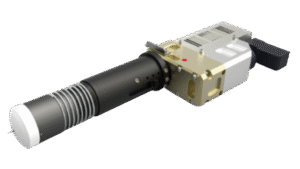

eot4
Processes thick corrugated, carton, leather, honeycomb. Air-cooled for durability.

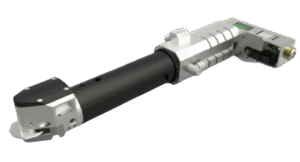

prt
High-power rotary tool for tough materials (glass fiber, aramid fiber). Strong and durable.
PARAMETERS
| PARAMETERS | Vectra – G1312 | Vectra – G2516 |
|---|---|---|
| Effective cutting area (mm) | 1300×1200 | 2500×1600 |
| Machine dimension (mm) | 2100×2000 | 3200×2400 |
| Weight | 600kg-900kg | – |
| Maximum cutting speed | 1800mm/s | – |
| Maximum cutting Thickness | 50mm | – |
| Cutting precision | 0.1mm | – |
| File format | DXF / HPGL | – |
| Suction media | Vacuum | – |
| Pump power | 7.5KW | – |
| Electric power | 220V / 50HZ 380V / 50HZ | – |
| Operation environment | Temperature 0°C-40°C Humidity 20%-80%RH | – |
