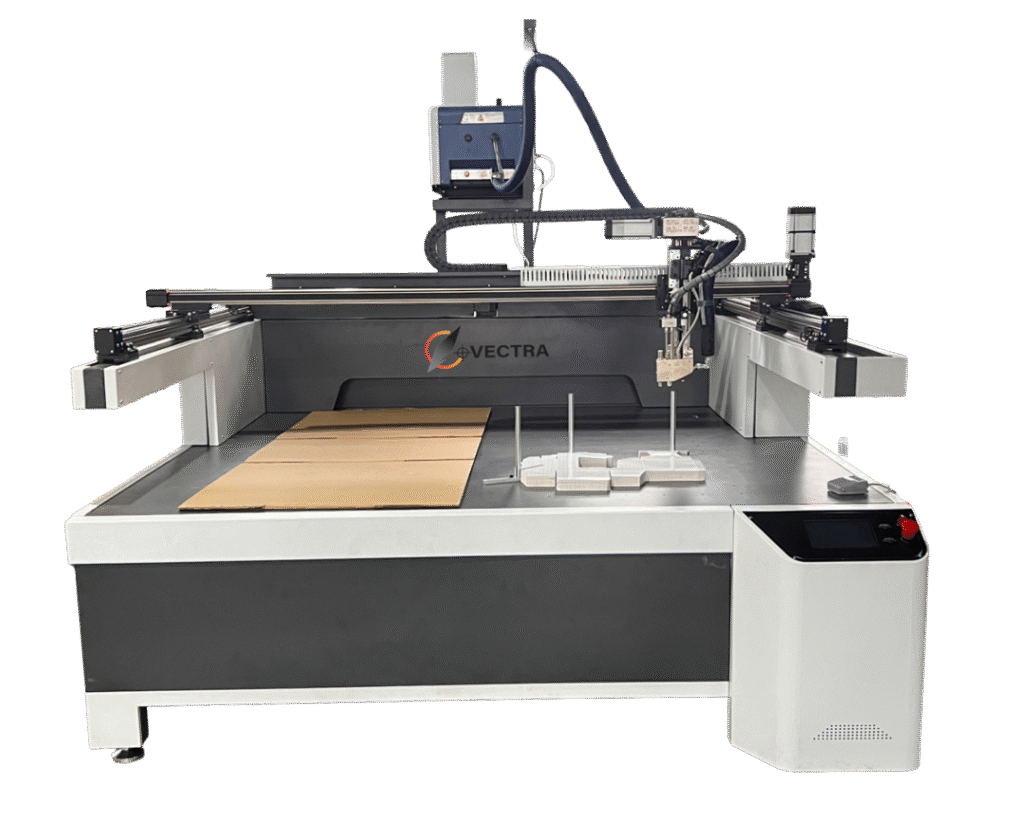

VECTRA H
Gluing Machine
Innovation in Gluing Processes
The new Vectra Gluing Machine is designed to take efficiency and precision in packaging and material gluing to the next level. With an intelligent teaching system and advanced functions, this machine delivers speed, versatility, and significant savings on consumables.
Smart Teaching System
With just one demonstration, the machine memorizes the working track and automatically repeats the process, making it easy to operate even for inexperienced staff.
Fast and Flexible Adjustments
Perfect for small orders or irregular-shaped designs. The Vectra Gluing Machine ensures reduced setup times and maximum efficiency.
Two Operating Modes
🥇 Teaching Mode for simple operations.
🥇 CAD File Import for more complex cutting and gluing projects.
High Gluing Quality

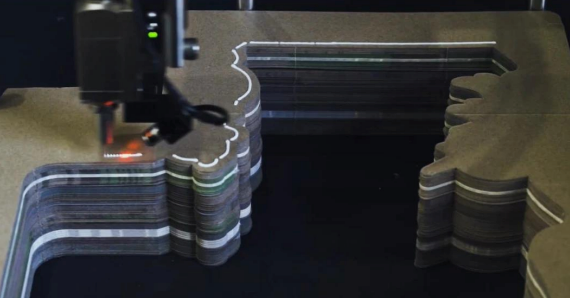

Glue application can be adjusted to dots or lines with total accuracy, reducing adhesive consumption by up to 40% compared to manual work.
Multifunctional Versatility
Compatible with cold glue and hot melt glue, adapting to a wide range of materials and production needs.
Benefits for Your Business
- Increased productivity and precision.
- Reduced material costs.
- Easy operation, even for beginners.
- Consistent results with every application.
| PARÁMETROS | ||
|---|---|---|
| Model | Vectra – H1100 | Vectra – H1600 |
| Maximum Gluing Area (for cold glue & hot glue) | 1000*750mm | 1500*1300mm |
| Max paper size | 1200*900mm | 1700*1600mm |
| Paper thickness | 100-200mm | 100-200mm |
| Pressure | 6~8Bar | 6~8Bar |
| Total power | 2Kw | 2Kw |
| Weight | 700Kg | 850Kg |
| Overall dimension | 1560*1740*2120mm | 2200*2500*2120mm |
