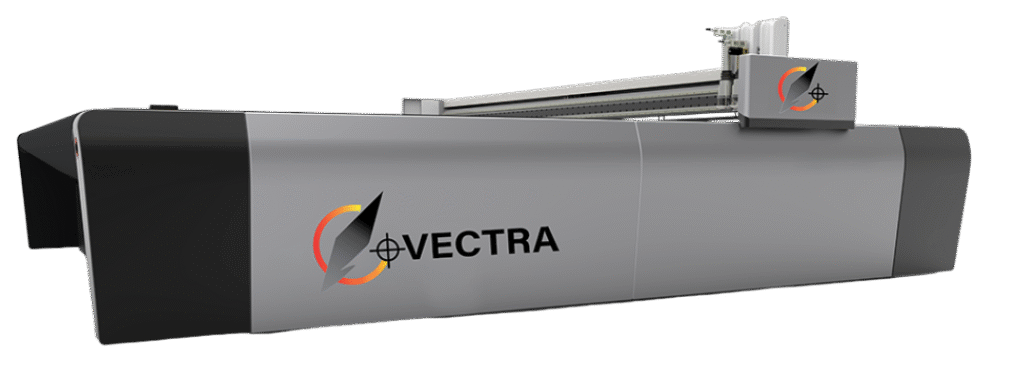

VECTRA Z
High-Precision Multi-Industry
Flexible Material Cutting System
Linear motor drive “Zero” transmission
VECTRA Z adopts the linear motor drive technology, which replaces the traditional transmission structures such as synchronous belt, rack and reduction gear with electric drive motion onto connectors and gantry.
The fast response by the “Zero” transmission greatly shortens the acceleration and deceleration, which improves the overall machine performance significantly.
Accuracy improvement
The linear transmission
system reduces the
transmission error caused
by the mechanical
mechanism, thereby
greatly improving the
cutting accuracy of the
equipment.
Acceleration
The high-speed
response of the direct
drive shortens the
acceleration and
deceleration process,
thereby increasing the
overall cutting speed,
and the speed can
reach 2 m/s.

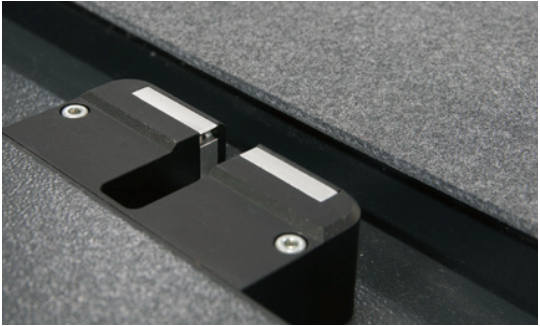

Noise reduction
The guide rail uses a
magnetic pad to
suspend the guide rail
(without mechanical
contact), which greatly
reduces the noise of the
equipment when it is
moving.
Efficiency enhancement
There are no other
links in the transmis-
sion process, which
reduces the energy
loss of mechanical
friction.
High-speed response
The new drive mode
greatly improves the
dynamic response
performance of all
closed-loop control
systems, and the
response speed is
extremely fast and
sensitive.
Optical Automatic Knife Initialization
● Automatic Knife Initialization accuracy <0.2 mm.
● Automatic Knife Initialization efficiency increased by 30%
| PARAMETERS | |||
| Vectra – Z3532 | Vectra – Z3516 | Vectra – Z2516 | |
| Model | Vectra – Z3532 | Vectra – Z3516 | Vectra – Z2516 |
| Size (mm) | 4400X3900X830 | 4400X2300X830 | 3400X2300X830 |
| Effective cuttinng area (mm) | 3500X3200 | 3500X1600 | 2500X1600 |
| Weight | 1550kg | 1300kg | 1050kg |
| Maximum cutting speed | 2000mm/s | ||
| Maximum cutting thickness | 50mm | ||
| Cutting accuracy | 0.0.05mm | ||
| Machine head | Single cutting head, Two cutting heads, Three cutting heads | ||
| Power supply | 380V/50HZ、220V/50HZ | ||
| Interface | Serial port | ||
| Operating environment | Temperature 0°C-40°C, Humidity 20%-80%RH | ||
| Tool | UCT, V-CUT, CTT, KCT, EOT, POT, PRT, 350W Router , 1.8kW Router, Cylinder pen, etc. | ||
