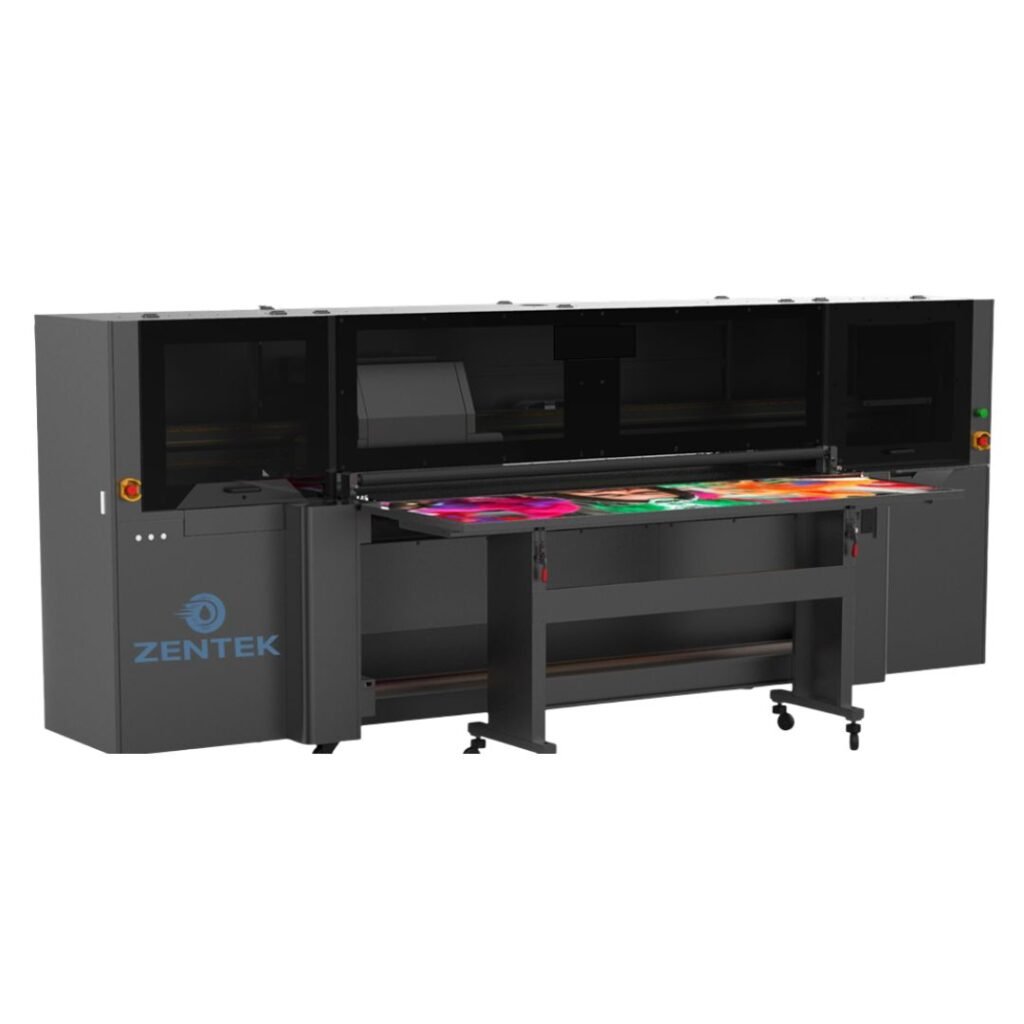

Zentek W2000
UV Flatbed Printer
Experience Industrial Printing Excellence with the Zentek W2000 an industrial-grade UV flatbed printer designed for superior performance and eco-friendly results.
With its advanced piezoelectric inkjet printhead, automatic anti-crash function, and versatile media handling, the Zentek W2000 delivers excellent color and high durability on a wide range of materials.
Ready to see how the Zentek W2000 can transform your production? Contact us today to request a quote and discover a solution built for speed, quality, and reliability.
Features
6 Colors C+M+Y+K+W+V, C+M+Y+K+CM+LM
LED UV ink environment friendly, excellent colors, high durability, Zentek LED UV inks
Piezoelectric inkjet printhead 6pl, Grayscale Technology

On demand piezoelectricity inkjet mode, support gray level printing
Resolution up to 540720, 5401080, 726720, 7261080, 726*1440
Cartidge 2.5L
RIP software: Photoprint Zentek Edition 12, Caldera, Onyx for option
International standard ICC color control, curve and density adjustable
One year
Media/handling
- Vinyl, pet, film, blockout, backlit, synthetic paper, banner, etc
- Easy to load and unload materials, suitable for various materials
- The maximum width is 330cm, the diameter is 32cm and the weight is up to 100kg.
Environment requirments
- Temperature: 20-30 C
- Humidity: 35-65% (non-condensing)
- Maximum power: 8500W
- Net weight:1500kg
- Access parameter Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 50A
- Power: 200-240V AC, single phase, 50/60Hz, 25A (printer) 25A (UV lamp)
PRODUCTIVITY
KONICA SOLUTION
| Printing mode | Speed |
|---|---|
| Express Mode (4pass) | 100sqm / hr |
| Production Mode (6pass) | 82sqm / hr |
| Quality Mode (8pass) | 45sqm / hr |
KEPSON SOLUTION
| Printing mode | Speed |
|---|---|
| Express Mode (2pass) | 97 sqm / h |
| Production Mode (4pass) | 50sqm / hr |
Variable color configuration + grayscale print mode
Dual CMYK array, supporting white printing W2000 standard
configuration 4 colors, max 12 printheads, Light cyan, light magenta and white for option to extend color configurations and applications.
Printhead anti-crash function
Carriage will stop in case printheads are lower than media . It helps to protect printedhead from crash damage caused by improper operation or bad material quality.
LED light box system
Build -in LED light strip for previewing light box performance as printing.
Adjustable suction platform
Adjustable printing platform suction reduces material wrinkle to guarantee printing precision.
Solenoid ink purge and flushing system
Easy to perform, and ink-saving
Automatic media locating system
Media locating bar helps confirming printing initial position and ensuring accuracy.
Automatic height adjusting system
Automatically detecting media thickness and adjusting printhead height function enable printing over 51mm thick subtrates. It greatly improves automation and image output quality.
Automatic take-up and feed-in system
Equipped with air shaft and motor with adjustable rotate speed, it can meet the take-up and feed-in requirements of materials with different thickness, and avoid wrinkle issues
Automatic dual negative pressure system
Automatic negative pressure adjustment, stable and smart.
Independent white ink negative pressure system prevents white ink dripping problem and improves ink fluency.
Approved by EU and international standard system
Conforming to ISO9001, 2008 international standard system
CE, FCC, UL, CE and RoHs certicates obtained.
